1102 LBS
80,71" inch
360° Swivel
131,89" inch

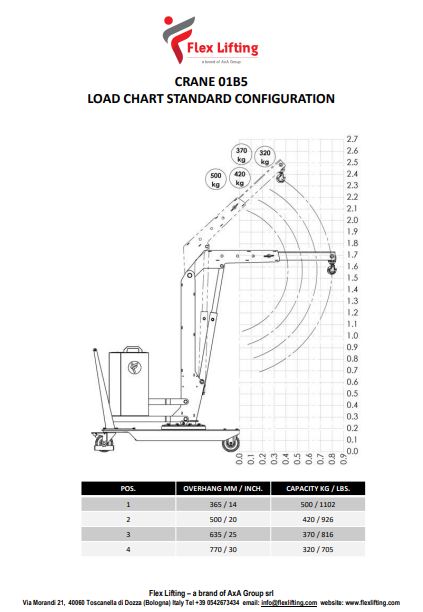

Model 01B5 allows lifting and handling of loads of up to 1102 lbs. Crane rotates 360° with free rotation (lever in rest position) or can be locked every 30° (lever actuated) by means of a slewing ring at the base of the column. There are 2 handles to make rotation easy and smooth. Swivel hook with safety lock. Robust, removable push handle.
The special feature that makes the 01B5 incredibly manoeuvrable is its frontal footprint of only 80,71”. This is the smallest size on the market. Crane easily manoeuvrable thanks to 2 pivoting high capacity wheels with bumper supports and parking brakes and 2 fixed front wheels with bearings. Entire chassis made of stove-enamelled steel equipped at the base with 2 useful forklift supports (for lifting and transporting the crane over long distances in complete safety)
The raising and lowering of the arm is electrical and at a single, non-adjustable speed. They are done by operating 2 special controls on the hand control. There is also an emergency stop control on the hand control.
The hydraulic system is equipped with a block valve that prevents the load from falling in the event of accidental hose rupture and a relief valve that prevents the crane from being overloaded.

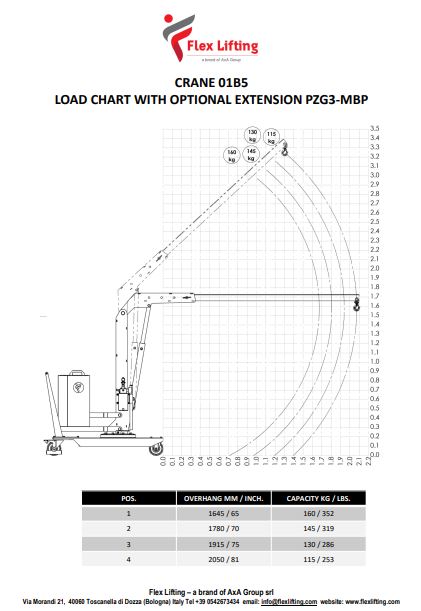

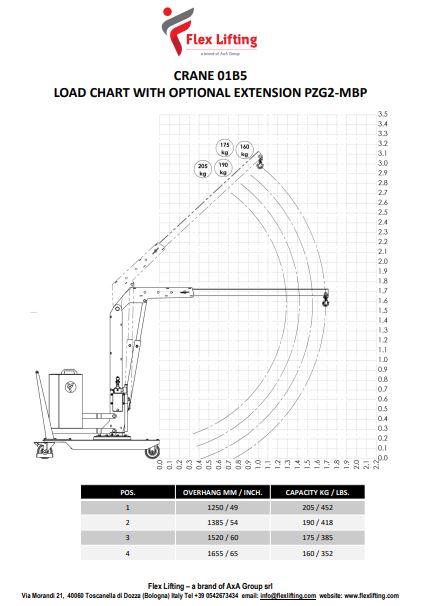

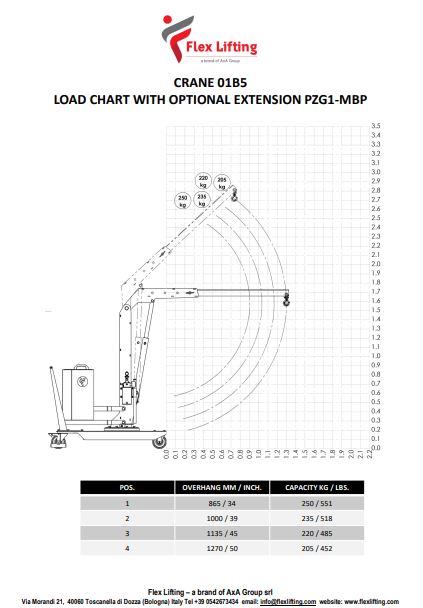

The arm is extendable in 4 positions and 3 types of optional arm extensions are available to increase the overhang to a maximum length of 80,71”.
External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.
Multifunction display showing charge level, battery voltage and operating hour meter.
Manual
131,89"
360° Swivel
Electric at single speed
1102
38,58"
80,71"
Electric at single speed
Manual 4 positions
Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.
Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.
Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.
Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.
Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.
Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.
Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.
Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.
Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.
Model 01B5 allows lifting and handling of loads of up to 1102 lbs. Crane rotates 360° with free rotation (lever in rest position) or can be locked every 30° (lever actuated) by means of a slewing ring at the base of the column. There are 2 handles to make rotation easy and smooth. Swivel hook with safety lock. Robust, removable push handle.
The special feature that makes the 01B5 incredibly manoeuvrable is its frontal footprint of only 80,71”. This is the smallest size on the market. Crane easily manoeuvrable thanks to 2 pivoting high capacity wheels with bumper supports and parking brakes and 2 fixed front wheels with bearings. Entire chassis made of stove-enamelled steel equipped at the base with 2 useful forklift supports (for lifting and transporting the crane over long distances in complete safety)
The raising and lowering of the arm is electrical and at a single, non-adjustable speed. They are done by operating 2 special controls on the hand control. There is also an emergency stop control on the hand control.
The hydraulic system is equipped with a block valve that prevents the load from falling in the event of accidental hose rupture and a relief valve that prevents the crane from being overloaded.
The arm is extendable in 4 positions and 3 types of optional arm extensions are available to increase the overhang to a maximum length of 80,71”.
External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.
Multifunction display showing charge level, battery voltage and operating hour meter.
